VISITOR FEVER SCREENING SYSTEM
Any object with a temperature above absolute zero degree is constantly emitting an amount of radiation. A Thermographic camera converts IR radiation into gray value and calculates the thermal information through the measurement algorithm model (temperature gray level curve) according to the corresponding relation between gray value and temperature.

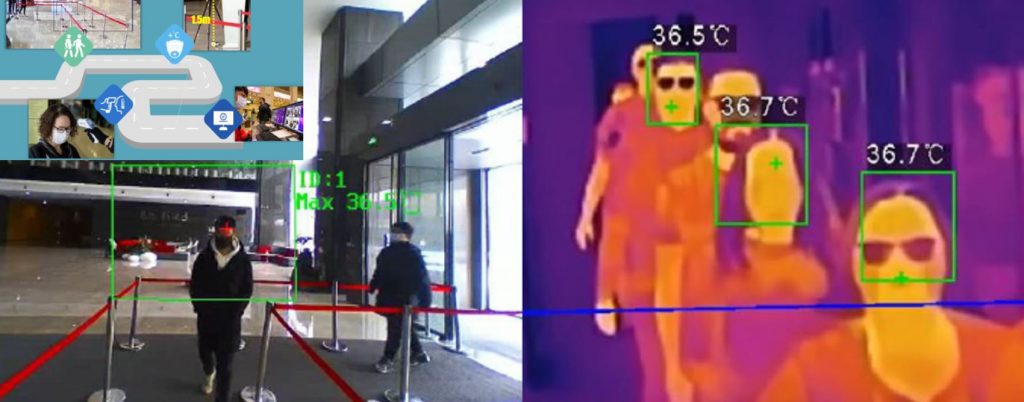

The visitor fever screening solution is using thermographic AI detection camera to measure human body temperature (non-contact method) and quickly find out if an individual has an abnormal temperature. Then the visitor screened with fever symptoms will be double confirmed by a fever thermometer.

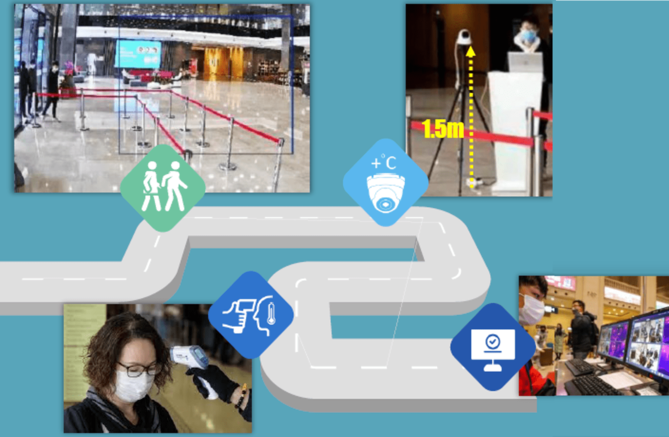

Visitor Thermal Fever Screening Procedure
1. Visitor Screening Channel
Make sure all visitors have their body temperature measured.
2. Thermographic Camera
Quickly screens crowded visitors areas with an
Double checks the screened visitors with high
It’s possible to Approve or Reject the visiting people with the system

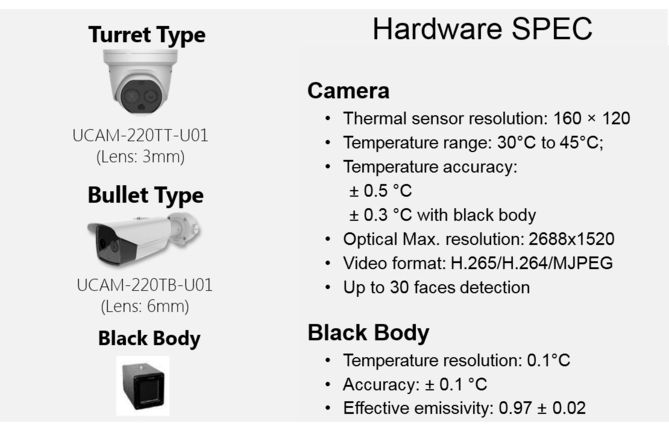

KEY FEATURES – THERMOGRAPHIC CAMERA
AI Face Detection – Focus measurement areas are on the human face to reduce false alarms caused by other heat sources, for eg a coffee cup.
Bi-Spectrum Monitoring – Provides both thermal and optical image channels apart from temperature measurement.
Strobe Light & Audio Alarm -Triggers alarms to notify operators immediately when a person with an elevated body temperature passes by.
